Aluminium Extension Ladder (P-DEL)

Ladder for general usage

150kg Working Load

Heavy duty series ladder that works well for both household and industrial application

Available Type

Single Pole, Double Extension and Triple Extension

Available Rungs

Single Pole

:

7 – 14 Rungs

Double Extension

:

14 – 28 Rungs

Triple Extension

:

21 – 42 Rungs

Available Working Height

Single Pole

:

12 ft - 19 ft

Double Extension

:

17 ft - 31 ft

Triple Extension

:

20 ft - 41 ft

In order to do your job safely and effectively, you need to make sure you have the right working height.

To know what is working height, click here.

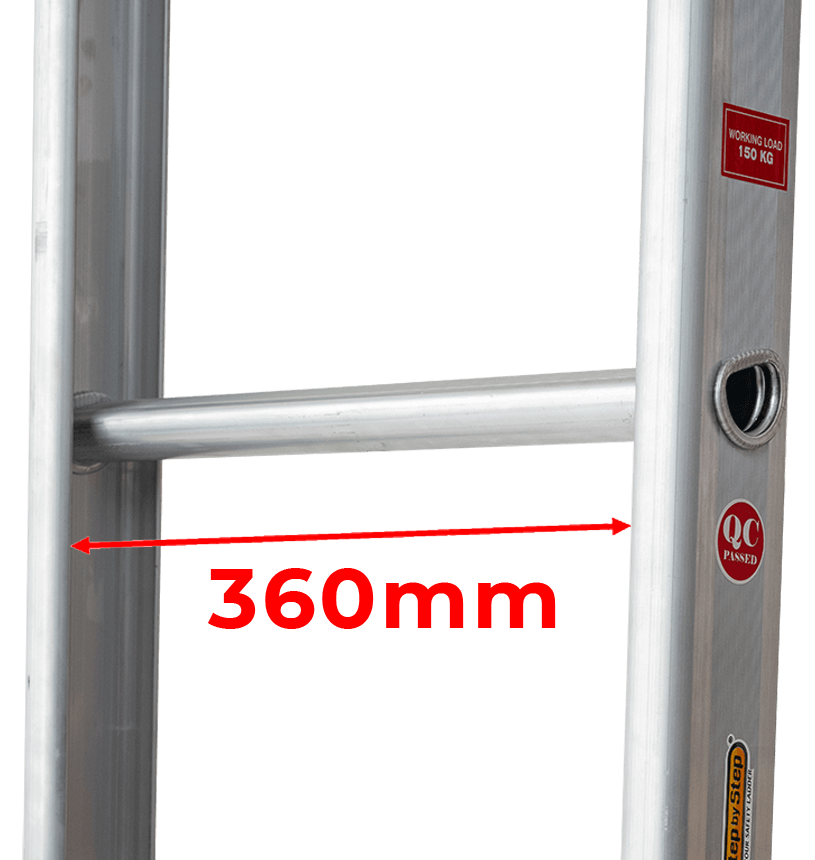

360mm Width of Rung

Comfortable stepping and climbing

D-shaped Rung

Slip resistant rung for safe climbing

Safety Features

Keep yourself Alert on Safety!

We paste safety label stickers to educate user on the Do’s and Don’ts

Solid Aluminium Extrusion Hook

Ladder is securely locked when in used!
* Aluminium extrusion hook is only applicable on double and triple extension

Comfortable Climbing Experience

Anti-slip steps features

1.4 inches width in size

The right size for you to step on

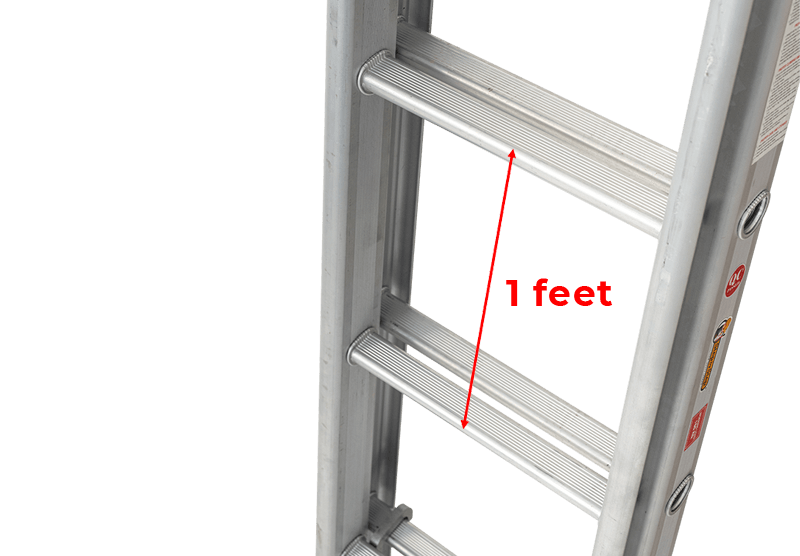

1 feet of Step Interval

Convenient gap for you to climb from one step to another

Stronger Floor grip and Prolonged Usage

Durable rubber shoes

Product Highlight

Smooth Cleaning from Dirt

Our ladder comes in clean and smooth finishing

No Recycle Material!

Manufactured with a strong grade of aluminium alloy

Optional Type of Rung

D-Rung or Round Rung

Spare Parts Available!

Maintenance and Repairing here in Malaysia!

Each Step and It’s Working Height

WPL02 (W)

2 Steps

Working Height:

8’0”

WPL03 (W)

3 Steps

Working Height:

8’7”

WPL04 (W)

4 Steps

Working Height:

9’3”

QL03

3 Steps

Working Height:

7’4”

QL04

4 Steps

Working Height:

8’0”

QL05

5 Steps

Working Height:

8’7”

QL06

6 Steps

Working Height:

9’4”

QL07

7 Steps

Working Height:

10’1”

QL08

8 Steps

Working Height:

10’8”

*Disclaimer: Working height is calculated based on 6' man height

Table of Product Specification

Single Pole

CODE	NO. OF RUNG	EXTENDED HEIGHT (FT)	WORKING HEIGHT (FT)	WEIGHT (KG)	PACKAGING DIMENSION (L x W x H)mm
P-DEL108	7	8’	12’	5.90	2410 x 365 x 85
P-DEL110	9	10’	14’	7.42	3030 x 365 x 85
P-DEL112	11	12’	16’	8.70	3665 x 365 x 85
P-DEL115	14	15’	19’	10.85	4580 x 365 x 85

WORKING LOAD : 150KG

*Disclaimer: Working height is calculated based on 6ft man height

Double Extension

CODE	NO. OF RUNG	CLOSED HEIGHT (FT)	EXTENDED HEIGHT (FT)	SAFETY OVERLAP RUNGS	WORKING HEIGHT (FT)	WEIGHT (KG)	PACKAGING DIMENSION (L x W x H)mm
P-DEL208	14	8'	13’	2	17’	11.42	2475 x 365 x 120
P-DEL210	18	10’	17’	2	21’	14.41	3095 x 365 x 120
P-DEL212	22	12’	21’	2	25’	17.00	3730 x 365 x 120
P-DEL215	28	15’	27’	2	31’	21.32	4615 x 365 x 120

WORKING LOAD : 150KG

*Disclaimer: Working height is calculated based on 6ft man height and max allowable extended height with 2 safety overlap rungs

Triple Extension

CODE	NO. OF RUNG	CLOSED HEIGHT (FT)	EXTENDED HEIGHT (FT)	SAFETY OVERLAP RUNGS	WORKING HEIGHT (FT)	WEIGHT (KG)	PACKAGING DIMENSION (L x W x H)mm
P-DEL308	21	8’	16’	3	20’	16.72	2565 x 365 x 175
P-DEL310	27	10’	22’	3	26’	21.17	3180 x 365 x 175
P-DEL312	33	12’	28’	3	32’	25.20	3820 x 365 x 175
P-DEL315	34	15’	37’	3	41’	31.60	4715 x 365 x 175

WORKING LOAD : 150KG

*Disclaimer: Working height is calculated based on 6ft man‘s height and max allowable extended height with 3 safety overlap rungs

Choose The Right Ladders!

It is important to choose the right ladders for you and your family safety. Want to know why? Watch below video to find out more

Safety is #1 Priority!

Wrong ladder usage can lead to trouble
